SOLDER REFLOW &CURING OVEN

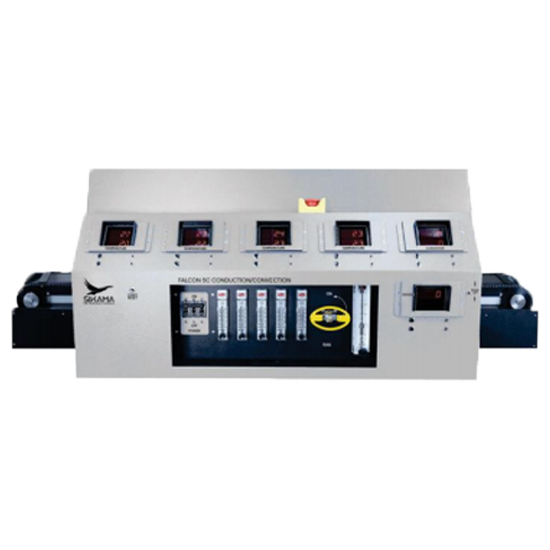

SIKAMA International's Falcon 5C solder reflow oven combines bottom-up conduction and top-down convection technology with precise calibration of temperature and purity of atmosphere for ultimate control of your solder reflow process. The Falcon 5C is atabletop system for production runs of moderate product sizes. It may be operated manually or with Sikama’s Integrated   V2 Software.

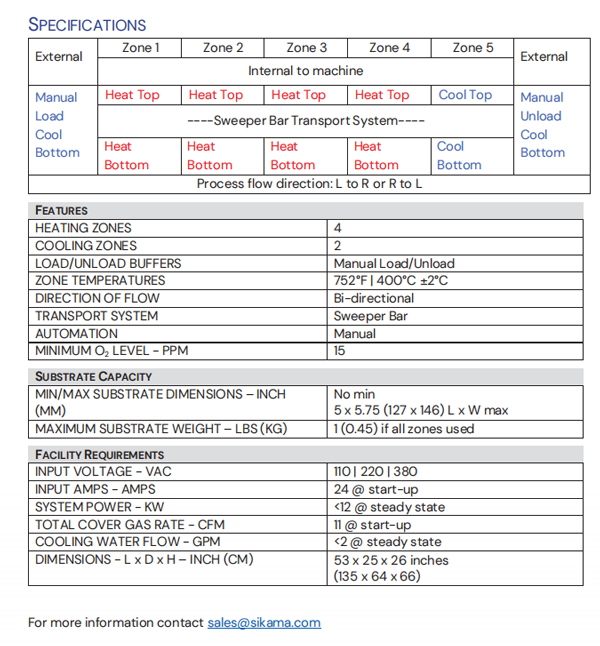

The Falcon 5C is a seven-zone system featuring a liquid-cooled loading platform, four heat zones, one  liquid-cooled  zone,  and  a  liquid-cooled  offload  platform.  The  five  internal  zones  have conduction  platens on the  bottom and convection  platens on the top.  Each  heat zone  has independent set points and gas flow controls that ensure consistent and precise temperatures for greater profile flexibility. The internal liquid-cooled zone ensures a process cool-down in an inert atmosphere before the product exits onto the offload platform.

Parts  are  transported  through  the  system  using  sweeper  bars  that  operate  in  a "dwell"mode, stopping in each zone for a set period. The system may be operated with air, nitrogen, or forming gas. The inert gas flow enters the reflow chamber through small orifices in  the  top  heat platens.  It  exits to  the  sides  to prevent  contamination  of adjoining zones and eliminate flux buildup. In addition to heating the inert gas, the top platens  also  contribute  significant  radiant heat  to  the  reflow  process.  They  are  easily adjusted to minimize the opening of the reflow chamber (to as low as 0.25 inch), thus conserving inert gas consumption while maintaining the desired oxygen level in the chamber.

Capable of heating up to 400°C, the 5C is targeted at applications involving fluxless gold or tin reflow, singulated ball reflow of BGAs,fixtured double-side boards, large microwave components and a variety of substrate materials. The Falcon 5C's efficiency of operation and minimal use of electricity and gas are the result of SIKAMA's unique design for balanced heating and cooling. Combined with the small size of the unit,these features are designed to minimize your capital outlay and production costs.

The Falcon 5C produces impressive results for an affordable table-top oven.
